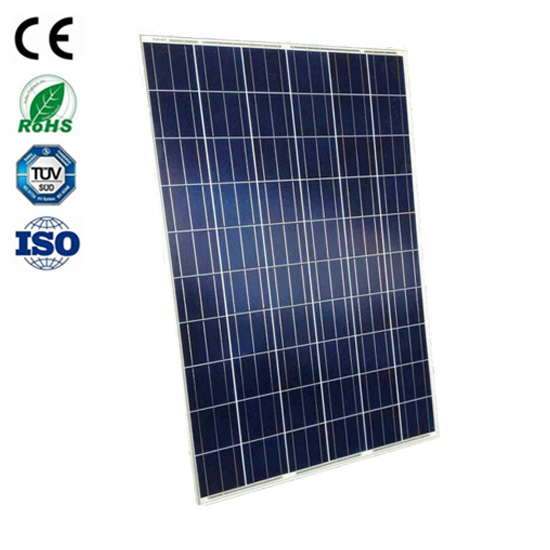

Product name : Poly solar panel / module 270w
Product No. : 201625183154
Price : Get the latest
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:



BENEFITS

  • 25 Years linear performance warranty.
  • 12 years warranty on power output not fall below 90%
  • 10 Years warranty on material and workmanship
  • 24 hour-response service
  • Enhanced design for easy installation and long-term reliability





FEATURES

  • Cost-effective standard solar modules for skylight, roofing and facades applications
  • 0 to +3% positive tolerance for mainstream products
  • Withstand high wind loads and snow loads (5400Pa)
  • Anti-reflective highly transparent, low iron tempered glass
  • Whole black and frame features aesthetic appearance



TYPICAL ELECTRICAL CHARACTERISTICS





Type



EP-P270W



Maximum Power(Pmax/W)



270



Power Tolerance



3%



Open Circuit Voltage(Voc/V)



37.86



Short Circuit Current(Isc/A)



8.85



Maximum Power Voltage (Vmp/V)



32.6



Maximum Power Current (Imp/A)



8.15



Module Efficiency(%)



16.6



Max. System Voltage



1000 VDC(IEC)



Cell Size and Series



156mm*156mm Poly 72pcs(6*12)



Bypass Diodes



3 pcs 15A



Temperature Coefficients of Pmax



-0.45%/℃



Temperature Coefficients of Voc



-0.35%/℃



Temperature Coefficients of Isc



+0.05%/℃



NOCT-Nominal Operating Cell Temperature



47±2℃



Note: the specifications are obtained under the Standard Test Condition(STC): 1000W/Msoalr irradiance , AM   1.5,Cell Temperature 25℃.







Mechanical Characteristics



Surface Maximum Load Capacity



2,400Pa



Allowable Hall Load



227g Steel ball fall down from 1m height



Glass Type



High Transmits, Low Iron,3.2mm Tempered Glass



Frame



Aluminum-alloy



Dimensions(mm)



1956×992×40



Weight(kg)



21



Dielectric Insulation Voltage



3000 VDC max



Operating Temperature



-40 ~ +85 ℃



Storage Temperature



-40 ~ +85 ℃



Cable Length



900mm
